Dump Body


Features
Options
Specifications
Brochure
Manual

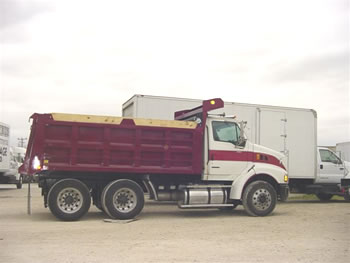

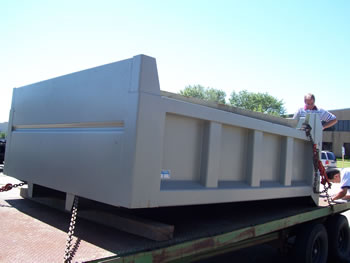

  Dump Body




Back to Product Line



Features Top




Options Top

 Back Up Alarm
 Boards - Structural Tubing
 Body Prop(s) - Hoist Mounted
 Body Up Light - Cab Mounted
 Cab Shields
 Lights/Reflectors - Fed. Std.


Specifications Top
  Dump Body


Specification Name Specification Detail
Construction ASTM A1011 A-45 High Tensile Steel
Understructure 4"-5.4#/ft. channel on 12" centers; 5"-6.7#/ft. channel (14'); 5"-9.0#/ft channel (15'-16')
Floor 3/16" High Tensile Steel w/radius edges
Sides 10 ga. steel w/4"x4"x1/8" sq. tube top rail; 6" wide vertical supports
Tailgates 10 ga., 9-panel braced w/6" slope
Front Bulkhead 10 ga. steel w/horizontal integrally formed braces; Dog House w/access door
Dimensions Width--Inside: 7'3"; Outside: 8'; Lengths--14' thru 16'
Capacities (cu. yd. - struck - sides/ends) 14'-13/15; 15'-14/16; 16'-15/17; 16'-17/19
Spreader Apron Standard 8"; weld on


Brochure Top

Download Dump Body Brochure
  G&H Brochures require Adobe Acrobat Reader Download here


Manual Top

Download Dump Body Manual
  G&H Brochures require Adobe Acrobat Reader Download here

Daily Driver Vehicle Inspection Report
Preventative Maintenance Inspection Form
  The documents above require Microsoft Excel
